One Valve.
Total Isolation.
The BridgeFlow Model "Y" Trunnion Mounted Mechanized Ball Valve replaces traditional Double Block & Bleed assemblies plus blind flanges — delivering certified positive isolation in seconds, not days.
Engineered for oil & gas, midstream, and industrial process systems. Meets API 6D, ASME, NACE, and OSHA positive isolation requirements.
ASME BMEA 2024
Best Innovation Award — Mechanical Engineering Achievement
50%
Fewer components in typical tie-in configurations
Blind-Flange Equivalent
Positive isolation achieved in seconds vs. hours or days
Patented Worldwide
Multiple domestic & international patents on mechanized sealing technology
Traditional isolation assemblies cost more than they should.
Conventional Double Block & Bleed setups with separate blind flanges introduce complexity, risk, and cost at every stage — from specification to maintenance.
Traditional Approach
DBB + Gate Valve + Blind Flange Assembly
- Multiple separate components: gate valve, block valve, spectacle blind
- Hours or days required to achieve positive isolation
- Operator exposure to process media during maintenance
- Pressure-energized seals wear over time — leak risk increases
- Complex logistics: specify, procure, and track multiple parts
- Higher total installed cost and extended commissioning time

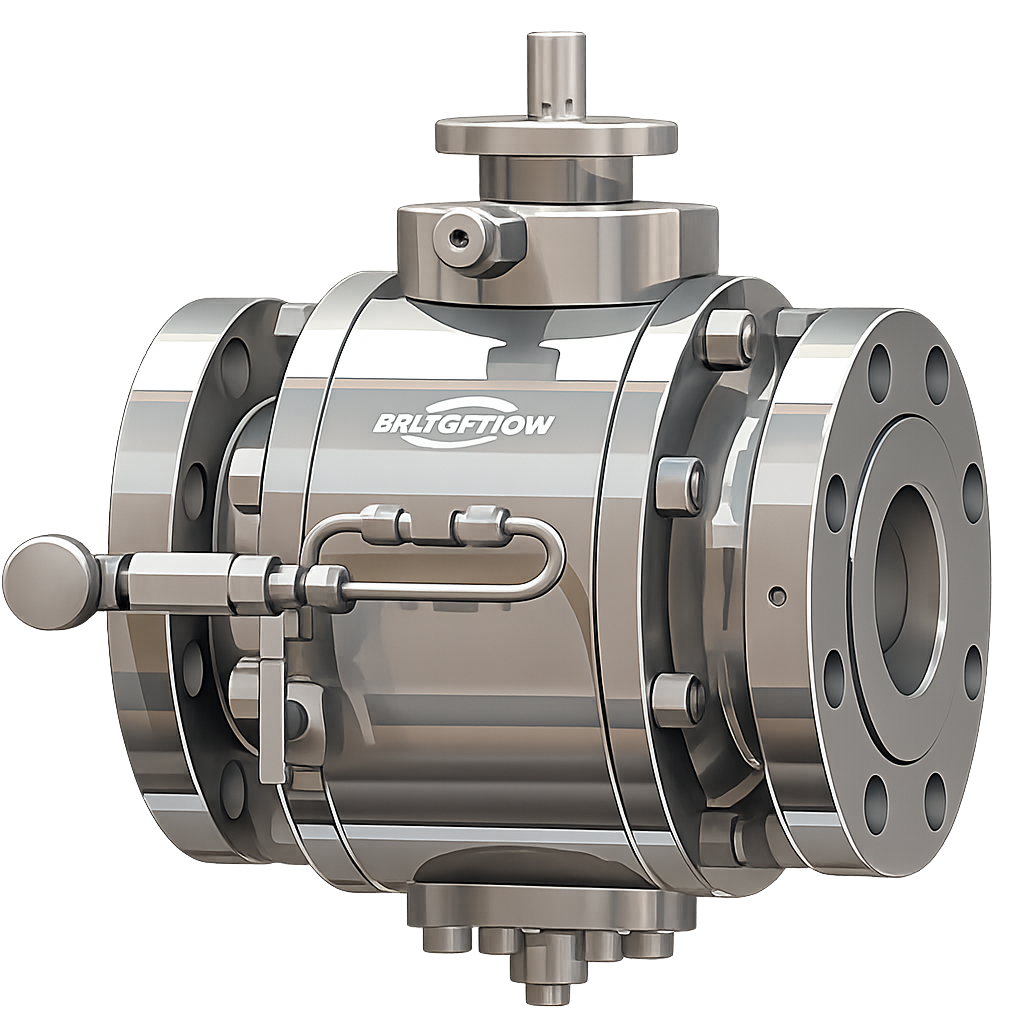

BridgeFlow Model "Y" TMMBV
Single Integrated Isolation Valve
- Single integrated valve body replaces entire assembly
- Blind-flange-equivalent isolation achieved in seconds
- Zero operator exposure — mechanical isolation without line entry
- Bidirectional forced seal — integrity independent of pressure
- One valve to specify, purchase, and track
- Up to 50% fewer parts, reduced footprint, lower lifecycle cost
"BridgeFlow's Mechanized Ball Valve revolutionizes valve technology by offering unmatched durability, superior sealing, and environmental sustainability."
— ASME Best Mechanical Engineering Achievement Committee, 2024
See How It WorksThree reasons engineers specify BridgeFlow
Each pillar addresses a real operational challenge — backed by patented technology, international standards compliance, and field-proven performance.
Zero
Line entry required for isolation
Pillar 01
Enhanced Safety
Eliminate exposure. Eliminate error.

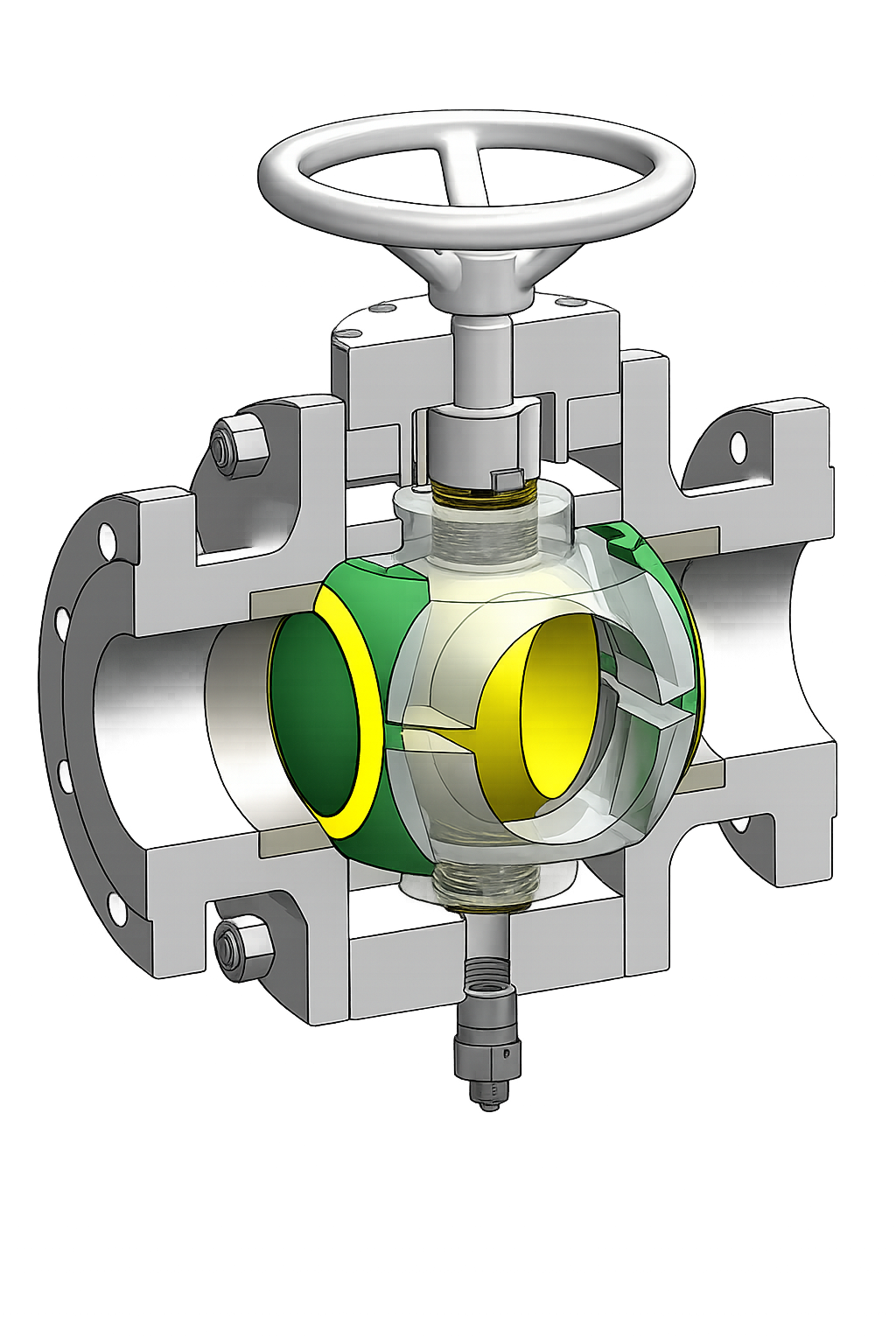

The integrated design removes the need for operators to enter the line during isolation. Mechanical positive isolation is achieved without specialized tools — reducing human error and field exposure to process media.
- Meets OSHA 'blanking or blinding' definition for hazardous energy isolation
- No operator exposure during isolation or maintenance
- Consistent, repeatable mechanical seal — not pressure-dependent
- Reduces isolation procedure complexity for field teams
50%
Fewer parts in typical tie-ins
Pillar 02
Reduced Footprint
One valve. The entire assembly.

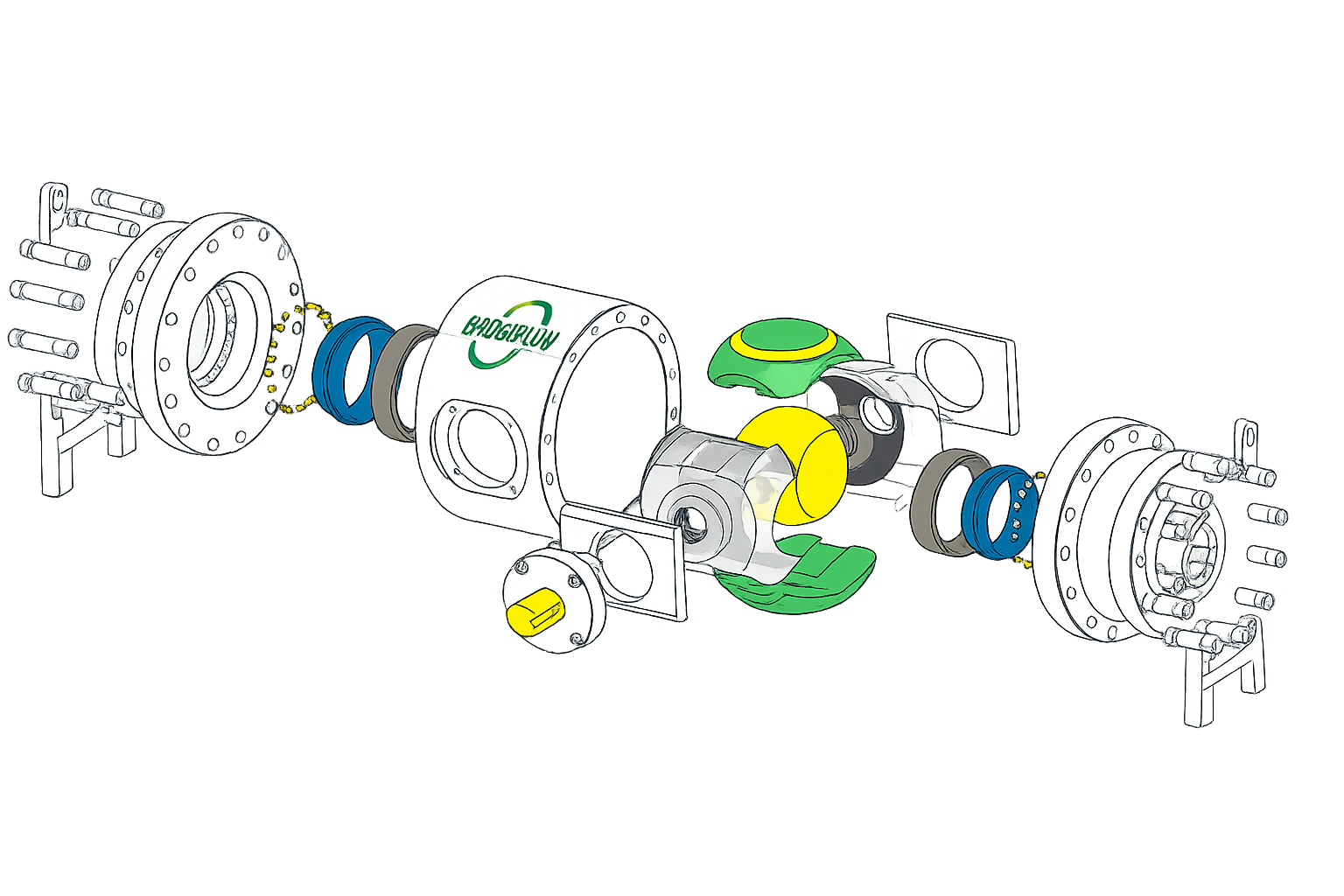

BridgeFlow replaces a multi-component assembly — gate valve, block valve, spectacle blind, and associated flanges — with a single compact body. Designed for space-constrained facilities and new-build efficiency.
- Up to 50% fewer components in typical tie-in configurations
- Single valve to specify, procure, and track
- Eliminates redundant sealing surfaces and leak paths
- Compact form factor suited for offshore and space-critical sites
TCO
Optimized across full asset lifecycle
Pillar 03
Lower Total Cost
Fewer parts. Less downtime. Longer life.
Extended service life, reduced maintenance frequency, and simplified logistics combine to deliver a lower total cost of ownership over the asset lifecycle. The friction-free switching mechanism eliminates wear on sealing surfaces.
- Friction-free ball rotation eliminates seal wear — extends service life
- Reduced installation time and commissioning labor
- Single procurement item simplifies supply chain
- Minimized downtime vs. traditional spectacle blind changeouts
Performance validated by standards and results
0%
Fewer Components
In typical tie-in configurations vs. traditional DBB + blind flange assembly
0
ASME BMEA Award
Best Innovation Award — Best Mechanical Engineering Achievement
0+
Standards Certified
API 6D, ASME B16.34, ASME BPVC, NACE MR0175, ISO 15848, ASTM
0%
Mechanical Isolation
Positive isolation equivalent to blind flanges — no pressure dependency
Recognized by ASME as the best innovation in mechanical engineering
In 2024, BridgeFlow received the ASME Best Mechanical Engineering Achievement (BMEA) Best Innovation Award — the industry's most prestigious recognition for engineering advancement. The award specifically cited the patented Mechanized Ball Valve for its leakproof operation, frictionless rotation, and superior sealing over traditional methods.
ASME BMEA Best Innovation Award
BridgeFlow Patented Mechanized Ball Valve
American Society of Mechanical Engineers · 2024
Designed and tested to exceed conventional standards
Pipeline Valves Standard
American Petroleum Institute
Valves — Flanged, Threaded, and Welding End
American Society of Mechanical Engineers
Boiler & Pressure Vessel Code
American Society of Mechanical Engineers
ISO 15156 — Sour Service Materials
NACE International
Industrial Valves — Fugitive Emissions
International Organization for Standardization
Material & Testing Standards
ASTM International
Ready to simplify your isolation strategy?
Speak with an Iron Gate Supply engineer to evaluate BridgeFlow for your specific application. We provide technical documentation, application assessments, and specification support.
